React hooks & component for Apache ECharts — TypeScript, auto-resize, themes, lazy init.

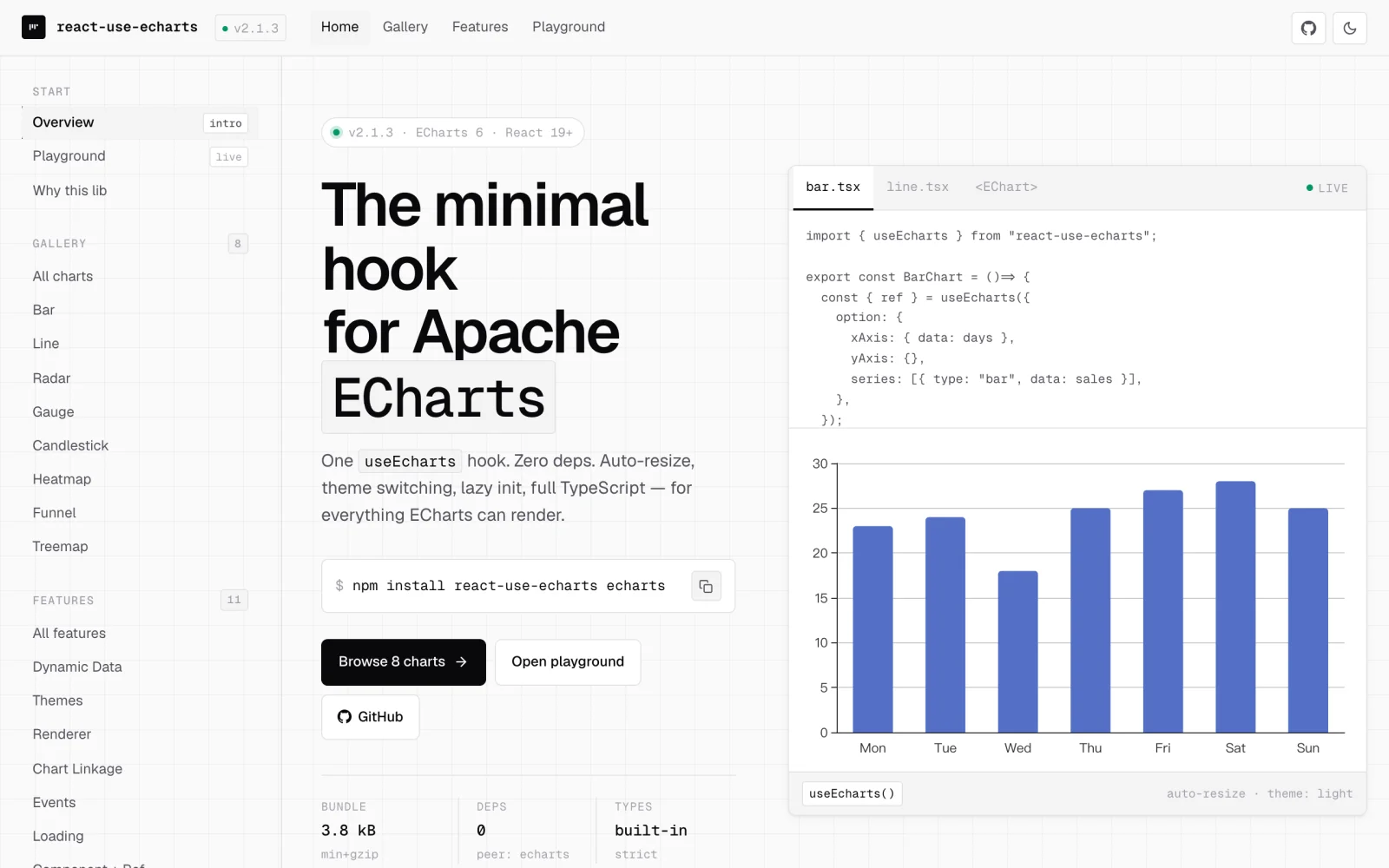

Live demo & interactive playground →

Features

• Hook + Component — use useEcharts hook or the declarative <EChart /> component
• TypeScript first — complete type definitions with IDE autocomplete
• Zero dependencies — no runtime deps beyond peer deps
• Auto-resize — handles container resizing via ResizeObserver
• Themes — built-in light, dark, and macarons themes, plus any custom theme
• Chart linkage — connect multiple charts for synchronized interactions
• Lazy initialization — defer chart init until element enters viewport
• StrictMode safe — instance cache with reference counting handles double mount/unmount

Why react-use-echarts?

A modern, hook-first wrapper for teams on React 19 + ECharts 6. ECharts stays the single source of truth — you pass EChartsOption straight through, with no abstraction layer to re-learn.

	react-use-echarts	echarts-for-react
API	useEcharts hook and <EChart /> component	Component only
Built for	React 19 — callback ref, StrictMode-safe	React 16–18 era
Auto-resize	ResizeObserver + RAF, on by default	✓
Lazy init	Built-in lazyInit (IntersectionObserver)	Manual
Chart linkage	Built-in group prop	Manual echarts.connect
Error routing	onError for init / setOption / dispatch	Manual try/catch
Format & deps	ESM-only, tree-shakeable, zero runtime deps	CJS + ESM, zero deps

Already using echarts-for-react? Most props map 1:1 — see Migrating from echarts-for-react.

Requirements

• React 19.2+ (react + react-dom) — useEffectEvent is used internally and reached stable in 19.2
• ECharts 6.x
• Node.js 22+ (required only for tooling/SSR frameworks — the published bundle is browser ESM)

CSR only. ECharts needs a live DOM; SSR is not supported.

ESM-only since 1.3.0. The package publishes a single ESM build (dist/index.js). Every modern bundler (Vite, Next.js, webpack 5+, Rspack, Parcel, Turbopack) and Node 22+ (require(ESM)) consume it natively. If you still depend on CJS-only tooling, pin to 1.2.x.

Installation

npm install react-use-echarts echarts
# or
yarn add react-use-echarts echarts
# or
pnpm add react-use-echarts echarts

Register ECharts modules

Since v2.1 react-use-echarts is fully modular — it does not auto-register any ECharts chart, component, renderer or feature. Call one of the registrars below once at your application entry, before the first chart renders:

// Simplest — registers everything ECharts ships with (~290KB gzip).
import { registerEchartsFull } from "react-use-echarts/preset-full";
registerEchartsFull();

Or, for tree-shake-friendly production builds, register only what you actually render — see Tree-shaking for the recipe.

Why? Production minifiers (Rolldown/Oxc, Rollup) drop ECharts' top-level use([...]) side-effect registrations as pure because the upstream package's sideEffects field is non-conforming. Moving registration to the consumer side mirrors what vue-echarts, nuxt-echarts and react-chartjs-2 do, and keeps react-use-echarts reliable across every modern bundler.

Quick Start

1. Register ECharts Once

For the fastest start, register the full ECharts surface at your app entry:

// main.tsx / index.tsx
import { registerEchartsFull } from "react-use-echarts/preset-full";

registerEchartsFull();

For production bundles that only render a few chart types, replace this with selective echarts.use([...]) registration later; the chart API stays the same.

2. Render a Chart

The simplest component path — no ref needed:

import { EChart } from "react-use-echarts";

function MyChart() {
  return (
    <EChart
      style={{ width: "100%", height: 400 }}
      option={{
        xAxis: { type: "category", data: ["Mon", "Tue", "Wed", "Thu", "Fri"] },
        yAxis: { type: "value" },
        series: [{ data: [150, 230, 224, 218, 135], type: "line" }],
      }}
    />
  );
}

The chart container must have an explicit size. The example above sets it on <EChart />; if you keep the default { width: "100%", height: "100%" }, make sure the parent has an explicit height.

Pass ref to access the imperative API — see Returns for the full list (setOption, dispatchAction, clear, resize, appendData, getDataURL, convertToPixel, …).

3. Use the Hook Directly

For full control, use the hook directly. It returns a callback ref to attach to your container plus a reactive instance field and the full imperative API:

import { useEcharts } from "react-use-echarts";

function MyChart() {
  const { ref, instance, setOption, resize } = useEcharts({
    option: {
      xAxis: { type: "category", data: ["Mon", "Tue", "Wed", "Thu", "Fri"] },
      yAxis: { type: "value" },
      series: [{ data: [150, 230, 224, 218, 135], type: "line" }],
    },
  });
  return <div ref={ref} style={{ width: "100%", height: "400px" }} />;
}

instance is undefined before init and after dispose; subscribe via useEffect([instance]) to run side effects against the live ECharts instance.

The chart container must have an explicit size, for example style={{ width: "100%", height: "400px" }}.

Recipes

Themes

Built-in themes require one-time registration at app startup:

import { registerBuiltinThemes } from "react-use-echarts/themes/registry";
registerBuiltinThemes();

// Built-in theme
useEcharts({ option, theme: "dark" });

// Any string registered via echarts.registerTheme
useEcharts({ option, theme: "vintage" });

// Custom theme object (use useMemo to keep reference stable)
const customTheme = useMemo(() => ({ color: ["#fc8452", "#9a60b4", "#ea7ccc"] }), []);
useEcharts({ option, theme: customTheme });

Note: theme names registered directly via echarts.registerTheme() (like "vintage" above) work, but trigger a one-time dev-only warning because the library cannot see that registration. Prefer registerCustomTheme(name, config) from react-use-echarts — it registers the theme by name through the library, which silences the warning. If you must register via echarts.registerTheme() (e.g. a third-party package does it for you), the warning is safe to ignore as long as registration happens before the chart mounts; it never appears in production builds.

Event Handling

Supports shorthand (function) and full config (object with query/context). Known echarts events have their params type auto-inferred from EChartsEventPayloadMap — no manual cast needed.

useEcharts({
  option,
  onEvents: {
    // `params` is auto-typed as `ECElementEvent`
    click: (params) => console.log("clicked", params.data),
    mouseover: {
      handler: (params) => console.log("hovered", params.value),
      query: "series",
    },
    // `params` is auto-typed as `SelectChangedPayload`
    selectchanged: (params) => console.log("selection changed", params),
  },
});

Custom event names (e.g. registered via echarts.registerAction()) fall through to the open index signature with a loose params type. To get a typed payload for your own events, augment EChartsEventPayloadMap:

declare module "react-use-echarts" {
  interface EChartsEventPayloadMap {
    "my-custom-action": { foo: number; bar: string };
  }
}

Loading State

const [loading, setLoading] = useState(true);

useEcharts({
  option,
  showLoading: loading,
  loadingOption: { text: "Loading..." },
});

Chart Linkage

Assign the same group ID — tooltips, highlights, and other interactions will sync:

useEcharts({ option: option1, group: "dashboard" });
useEcharts({ option: option2, group: "dashboard" });

Lazy Initialization

Defer chart init until the element scrolls into view:

useEcharts({ option, lazyInit: true });

// Custom IntersectionObserver options
useEcharts({
  option,
  lazyInit: { rootMargin: "200px", threshold: 0.5 },
});

Note: lazy init is a one-shot latch — "lazy" means "defer until first visible", not "track visibility". Once the element has intersected, the chart stays initialized for the hook's lifetime: replacing the container DOM node or toggling lazyInit off and back on does not re-arm observation. To start deferring again, remount the component.

Tree-shaking

The library is fully modular — pick the registration tier that matches your build target:

Tier 1 — All-in-one (development / prototyping). One line, ~290KB gzip:

import { registerEchartsFull } from "react-use-echarts/preset-full";
registerEchartsFull();

Tier 2 — Selective (recommended for production). Register only what you render — bundlers tree-shake the rest of ECharts away:

import * as echarts from "echarts/core";
import { LineChart } from "echarts/charts";
import { GridComponent, TooltipComponent } from "echarts/components";
import { CanvasRenderer } from "echarts/renderers";
echarts.use([LineChart, GridComponent, TooltipComponent, CanvasRenderer]);

See examples/selective-registration/SelectiveRegistrationChart.tsx for a runnable demo.

Tier 3 — Webpack-only legacy. Webpack tolerates ECharts' non-conforming sideEffects field, so plain import "echarts"; still works in webpack apps but fails silently under Rolldown/Vite/Rollup (chart never paints, console shows TypeError from zrender's empty painter registry). Prefer Tier 1 or Tier 2 instead.

ECharts maintains a single global registry — echarts.use([...]) and registerEchartsFull() compose freely. You can call them in any order, anywhere in your app, but they must run before the first useEcharts() render.

Use with Next.js (App Router)

The default package entry, preset-full, and themes/registry are marked with "use client", so importing them inside any React Server Component file does not bundle ECharts into the server payload. Wrap the chart in your own client component and import it from any Server Component:

// app/components/MyChart.tsx
"use client";
import { EChart } from "react-use-echarts";
import { registerEchartsFull } from "react-use-echarts/preset-full";

registerEchartsFull();

export function MyChart() {
  return (
    <EChart
      style={{ height: 400 }}
      option={{
        xAxis: { type: "category", data: ["A", "B", "C"] },
        yAxis: { type: "value" },
        series: [{ type: "line", data: [1, 2, 3] }],
      }}
    />
  );
}

// app/page.tsx (Server Component) — imports the Client Component directly
import { MyChart } from "./components/MyChart";

export default function Page() {
  return <MyChart />;
}

Pages Router only: if you need to load the chart inside getServerSideProps / getStaticProps pages and force client-only rendering, use dynamic(() => import("./components/MyChart").then((m) => m.MyChart), { ssr: false }). In the App Router, next/dynamic with ssr: false is disallowed inside Server Components — the "use client" directive already does the right thing.

Gotchas

• Container needs explicit size — the chart won't render in a zero-height div; give the container height (and width if not 100%).
• Forgetting to register ECharts modules — useEcharts() initializes a chart against ECharts' shared global registry, so charts/components/renderers/features must be registered (via registerEchartsFull() or echarts.use([...])) before the first render. A missing registration usually shows up as Renderer 'undefined' is not imported or a chart that silently never paints; see Register ECharts modules. In dev, if init throws … is not a constructor, the library also prints a one-time hint pointing you here.
• Keep onEvents reference stable — a new onEvents object on each render triggers a full rebind. Memoize it with useMemo (or hoist) when handlers don't change.
• Don't share one DOM element across multiple useEcharts hooks — the instance cache reuses a single ECharts instance and emits a dev warning; updates from different hooks will overwrite each other.
• initOpts and custom theme objects recreate the instance on reference change — pass memoized or module-level constants unless recreation is intended.
• StrictMode is safe — double mount/unmount is handled by the reference-counted instance cache.

API Reference

<EChart /> Props

Declarative component wrapping useEcharts. Accepts all hook options as props plus:

Prop	Type	Default	Description
style	React.CSSProperties	{ width: '100%', height: '100%' }	Container style (merged with defaults)
className	string	—	Container CSS class
ref	Ref<EChartHandle>	—	Exposes the imperative API as EChartHandle (Omit<UseEchartsReturn, 'ref'> — the container ref is owned by <EChart> itself)

useEcharts(options)

Options

Option	Type	Default	Description
option	EChartsOption	(required)	ECharts configuration
theme	string | object	—	Any registered theme name, or custom theme object
renderer	'canvas' | 'svg'	'canvas'	Renderer type
lazyInit	boolean | IntersectionObserverInit	false	Lazy initialization via IntersectionObserver
group	string	—	Chart linkage group ID
setOptionOpts	SetOptionOpts	—	Default options for setOption calls
showLoading	boolean	false	Show loading indicator
loadingOption	object	—	Loading indicator configuration
onEvents	EChartsEvents	—	Event handlers (fn or { handler, query?, context? })
autoResize	boolean	true	Auto-resize via ResizeObserver
initOpts	EChartsInitOpts	—	Passed to echarts.init() (devicePixelRatio, locale, width, etc.)
onError	(error: unknown) => void	—	Error handler — effect failures logged via console.error without it; imperative setOption throws without it

Returns

Prefer the declarative props (option, theme, showLoading, …) over imperative methods. Use these methods only when a prop does not cover the action — image export, coordinate conversion, streaming append, etc. All methods are no-ops or return safe defaults when the instance is not yet initialized. When the instance throws, errors are routed through onError if provided (and the call returns the fallback); otherwise the error is rethrown — including from readers (no console.error fallback for imperative methods).

Container ref / live instance

Property	Type	Description
ref	RefCallback<HTMLDivElement>	Callback ref to attach to the chart container. Compose with your own ref via mergeRefs
instance	ECharts | undefined	Reactive — defined after init, undefined before init and after dispose. Subscribe via useEffect([instance]) to run side effects on the live instance

Lifecycle / updates

Method	Type	Description
setOption	(option: EChartsOption, opts?: SetOptionOpts) => void	Update chart configuration
dispatchAction	(payload: Payload, opt?: boolean | { silent?: boolean; flush?: boolean }) => void	Dispatch an ECharts action (highlight, downplay, showTip, etc.)
clear	() => void	Clear current chart content
resize	(opts?: ResizeOpts) => void	Manually trigger chart resize. ResizeOpts accepts width/height/animation/silent
appendData	(params: { seriesIndex: number; data: ArrayLike<unknown> }) => void	Append data to a series (streaming). Drift-aware: drops dedup memory so a subsequent shallow-equal-but-new-ref option rerender re-applies setOption

Read / introspect

Method	Type	Description
getOption	() => EChartsOption | undefined	Get the current merged option
getWidth	() => number | undefined	Container width in pixels
getHeight	() => number | undefined	Container height in pixels
getDom	() => HTMLElement | undefined	Underlying DOM container
isDisposed	() => boolean	Whether the instance is disposed (returns true when uninitialized — semantically gone)

Export

Method	Type	Description
getDataURL	(opts?) => string | undefined	Base64 image data URL (png / jpeg / svg)
getConnectedDataURL	(opts?) => string | undefined	Combined image of all charts in the same group
renderToSVGString	(opts?: { useViewBox?: boolean }) => string | undefined	Render chart to SVG string (works with the SVG renderer)
getSvgDataURL	() => string | undefined	Get SVG data URL of the current chart

Coordinate conversion

Method	Type	Description
convertToPixel	(finder: ChartFinder, value: ChartScaleValue | ChartScaleValue[]) => number | number[] | undefined	Logical → pixel coordinates
convertFromPixel	(finder: ChartFinder, value: number | number[]) => number | number[] | undefined	Pixel → logical coordinates
containPixel	(finder: ChartFinder, value: number[]) => boolean	Whether a pixel point is inside the matched component (false when uninit)

ChartFinder is string | { seriesIndex?, seriesId?, …, geoIndex?, … } — a string shorthand or a model finder object. ChartScaleValue is number | string | Date.

Other Exports

import { useLazyInit } from "react-use-echarts"; // standalone lazy init hook -> { ref, isInView }
import { mergeRefs } from "react-use-echarts"; // compose multiple refs into one callback ref
import { isBuiltinTheme, isKnownTheme, registerCustomTheme } from "react-use-echarts"; // theme utils (no JSON)
import { registerBuiltinThemes } from "react-use-echarts/themes/registry"; // ~20KB theme JSON
import { registerEchartsFull } from "react-use-echarts/preset-full"; // one-line full-set registrar (see Register ECharts modules)

// All exported types: UseEchartsOptions, UseEchartsReturn, UseLazyInitReturn,
// EChartProps, EChartHandle, EChartsEvents, EChartsEventConfig, EChartsEventHandler,
// EChartsEventPayloadMap, EChartsInitOpts, BuiltinTheme, LoadingOption,
// ChartFinder, ChartScaleValue, Payload.
// EChartsOption, SetOptionOpts, ResizeOpts are also re-exported here for
// convenience (they originate in the "echarts" package), so you can import them
// from react-use-echarts alongside the types above instead of reaching into echarts.

mergeRefs returns a callback ref that fans the node out to every input — RefObject, legacy callback ref, or React 19 callback ref with cleanup — and isolates each invocation so a throwing 3rd-party ref can't strand the chart. Reach for it when you need both the hook-provided ref and your own:

const myRef = useRef<HTMLDivElement>(null);
const { ref } = useEcharts({ option });
return <div ref={mergeRefs(ref, myRef)} style={{ height: 400 }} />;

Migrating from echarts-for-react

Most props map 1:1; a few are folded into existing options. Quick reference:

echarts-for-react	react-use-echarts	Notes
option	option	Same
theme	theme	Same; built-in themes need registerBuiltinThemes() first (see Themes)
notMerge / lazyUpdate	setOptionOpts: { notMerge, lazyUpdate }	Folded into a single object passed to setOption
showLoading	showLoading	Same
loadingOption	loadingOption	Same
onEvents	onEvents	Same shape; also accepts { handler, query?, context? } for query/context binding
onChartReady	Subscribe to the reactive instance	useEffect(() => { if (instance) onReady(instance); }, [instance]) — the returned instance is undefined before init and re-renders when init/dispose completes
opts.renderer	renderer: 'canvas' | 'svg'	Promoted to a top-level option
opts (rest)	initOpts	Same shape (devicePixelRatio, locale, width, height, useDirtyRect, etc.)
style	style	<EChart /> defaults to { width: '100%', height: '100%' } so the parent needs size
className	className	Same
lazyUpdate (top-level)	setOptionOpts: { lazyUpdate: true }	See notMerge row
shouldSetOption	Gate the option prop yourself	Top-level keys are deduped via shallowEqual automatically; for custom predicates (deep compare, throttling, app-state gating) memoize/skip the option prop in the parent component
autoResize (4.x)	autoResize	Same default (true); resize uses ResizeObserver + RAF
none	lazyInit	New: defer init until the container scrolls into viewport
none	group	New: chart linkage via shared group ID
none	onError	New: route init / setOption / dispatchAction errors through a callback

Side-by-side example:

// echarts-for-react
<ReactECharts
  option={option}
  theme="dark"
  notMerge
  lazyUpdate
  opts={{ renderer: "svg", devicePixelRatio: 2 }}
  onEvents={{ click: handleClick }}
  showLoading={loading}
  onChartReady={(instance) => instanceRef.current = instance}
/>

// react-use-echarts
<EChart
  ref={chartRef}
  option={option}
  theme="dark"
  setOptionOpts={{ notMerge: true, lazyUpdate: true }}
  renderer="svg"
  initOpts={{ devicePixelRatio: 2 }}
  onEvents={{ click: handleClick }}
  showLoading={loading}
/>
// chartRef.current?.instance replaces onChartReady

Migrating from v2.x

The library is fully modular, matching vue-echarts / nuxt-echarts / react-chartjs-2. It does not side-effect-import "echarts" from the default entry; add one line at your application entry:

// app entry (e.g. main.tsx, index.tsx)
import { registerEchartsFull } from "react-use-echarts/preset-full";
registerEchartsFull();

That call is equivalent to v2.0's automatic import "echarts" and gives you the same ~290KB-gzip everything-included experience. For production builds that only render a few chart types, replace it with a selective echarts.use([...]) — see Tree-shaking.

The old react-use-echarts/core subpath has been removed. It was only a deprecated alias of the default modular entry since v2.1, so replace any from "react-use-echarts/core" imports with from "react-use-echarts".

Migrating from v1

v2.0 flips the hook to return a callback ref + reactive instance, aligning with the modern community convention used by floating-ui/react, react-aria, downshift, and react-hook-form. <EChart /> external props are unchanged — only direct hook consumers and <EChart ref> typings migrate.

v1	v2	Notes
const ref = useRef(); useEcharts(ref, options)	const { ref } = useEcharts(options)	Hook owns the callback ref; attach it to your container
getInstance() method on the hook return	instance field on the same return	Reactive — re-renders when init/dispose completes; use useEffect([instance]) to subscribe
useLazyInit(ref, options) returning boolean	useLazyInit(options) returning { ref, isInView }	Same callback-ref pattern
useRef<UseEchartsReturn>(null) for <EChart>	useRef<EChartHandle>(null) for <EChart>	EChartHandle = Omit<UseEchartsReturn, 'ref'> — the container ref is intentionally not exposed on the imperative handle
Compose refs by hand	mergeRefs(chartRef, myRef)	New public utility (see Other Exports)
engines.node >=20	engines.node >=22	Tooling requirement only — published bundle is unaffected

Side-by-side hook example:

// v1
const chartRef = useRef<HTMLDivElement>(null);
const { setOption, getInstance } = useEcharts(chartRef, { option });
useEffect(() => {
  getInstance()?.on("finished", handler);
}, []);
return <div ref={chartRef} style={{ height: 400 }} />;

// v2
const { ref, instance, setOption } = useEcharts({ option });
useEffect(() => {
  if (!instance) return;
  instance.on("finished", handler);
  return () => instance.off("finished", handler);
}, [instance]);
return <div ref={ref} style={{ height: 400 }} />;

Contributing

We welcome all contributions. Please read the contributing guidelines first.

Changelog

Detailed changes for each release are documented in the release notes.

License

MIT Ethan
