EZ PM2 GUI

Discord

Available Languages: English | 中文

A modern web-based graphical user interface for the PM2 process manager, built with TypeScript, Tailwind CSS, and React.

Previous GitHub Releases

Screenshots

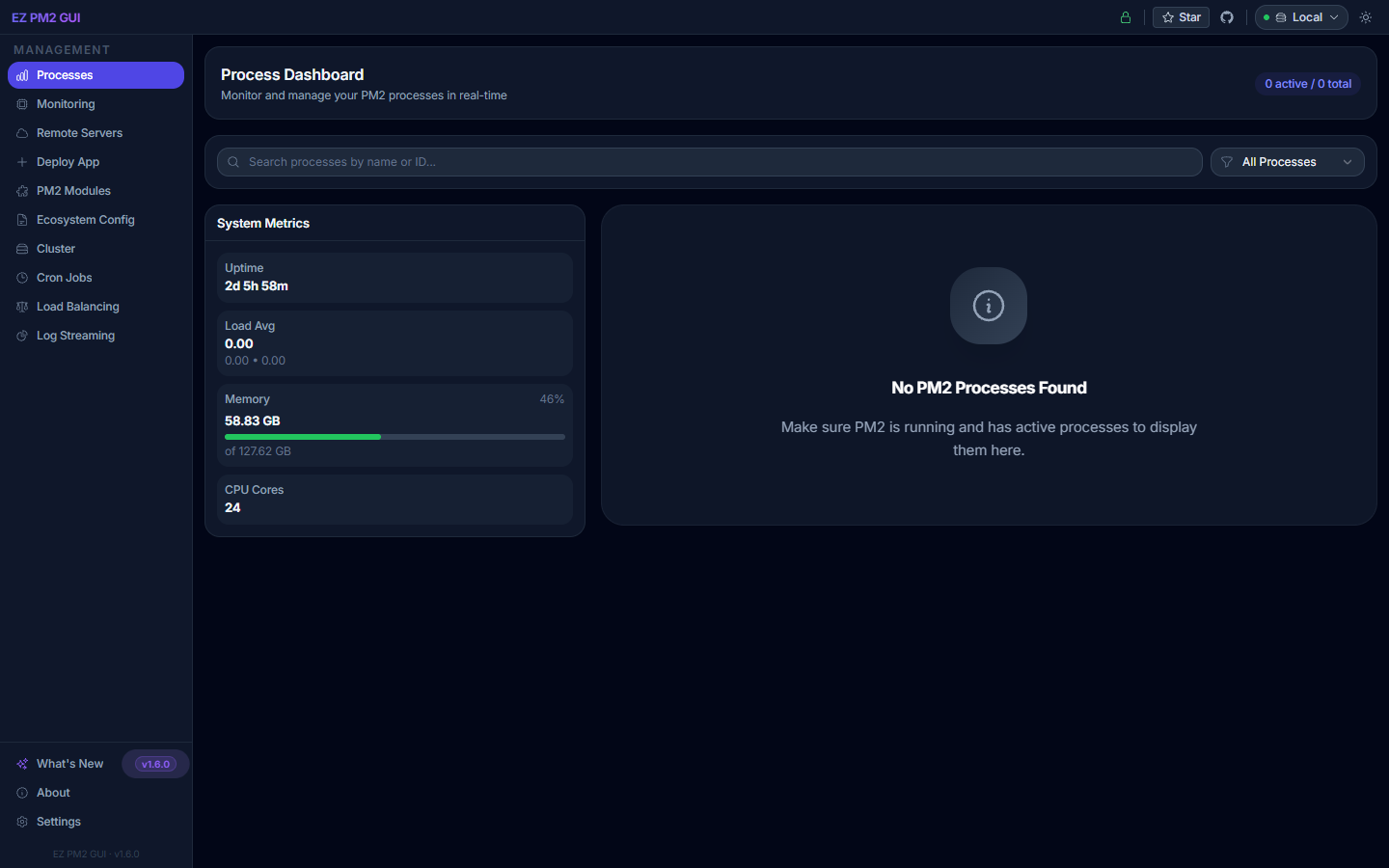

Process Dashboard — live system metrics and every PM2 process at a glance:

Process Dashboard

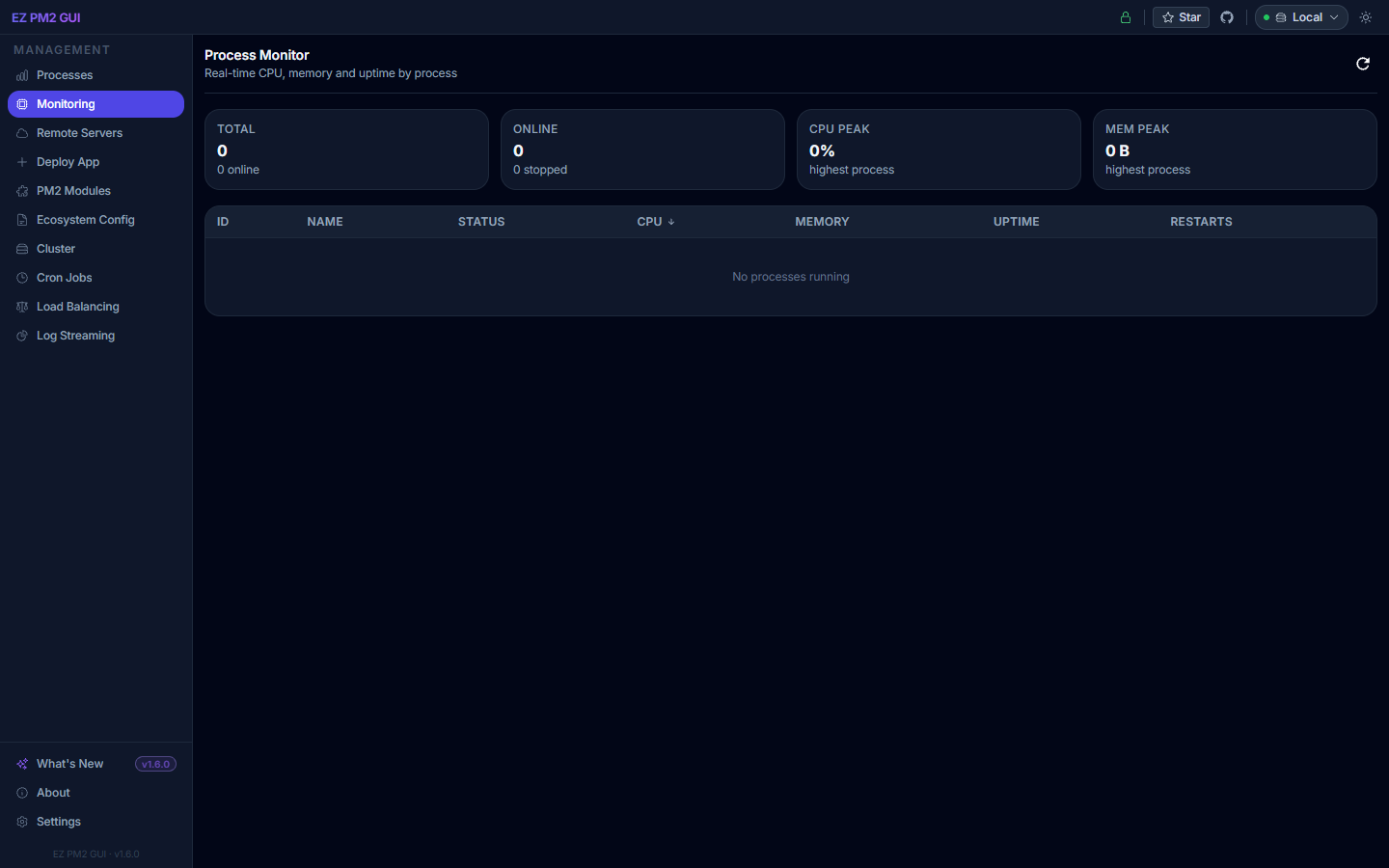

Monitoring — real-time CPU, memory and uptime per process:

Process Monitor

Metrics (Live) — rolling 1-hour sparklines per process, updated every 3 seconds:

Metrics Live

Metrics (History) — SQLite-backed CPU and memory charts with selectable time range:

Metrics History

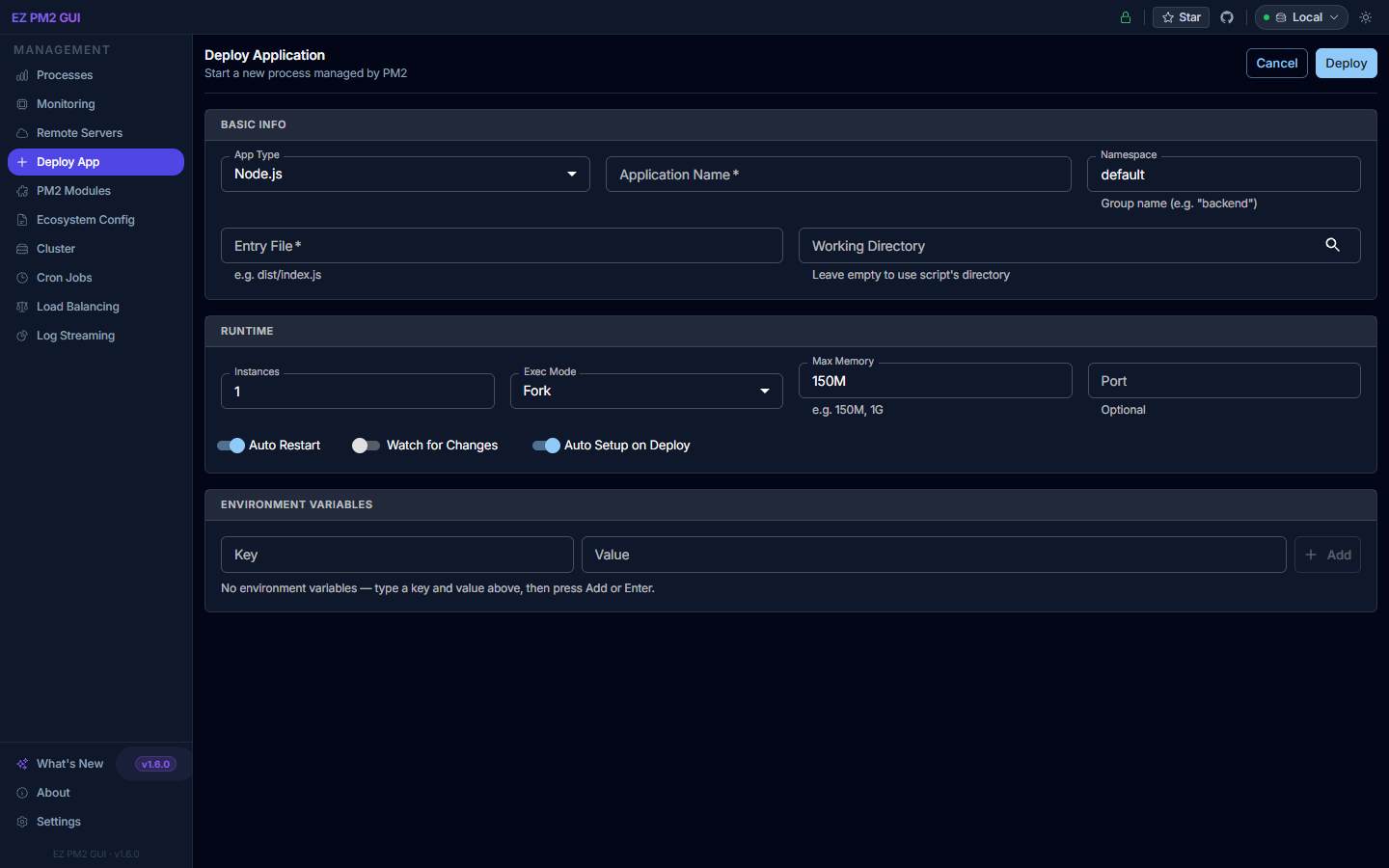

Deploy App — start new PM2 processes from a structured form:

Deploy App

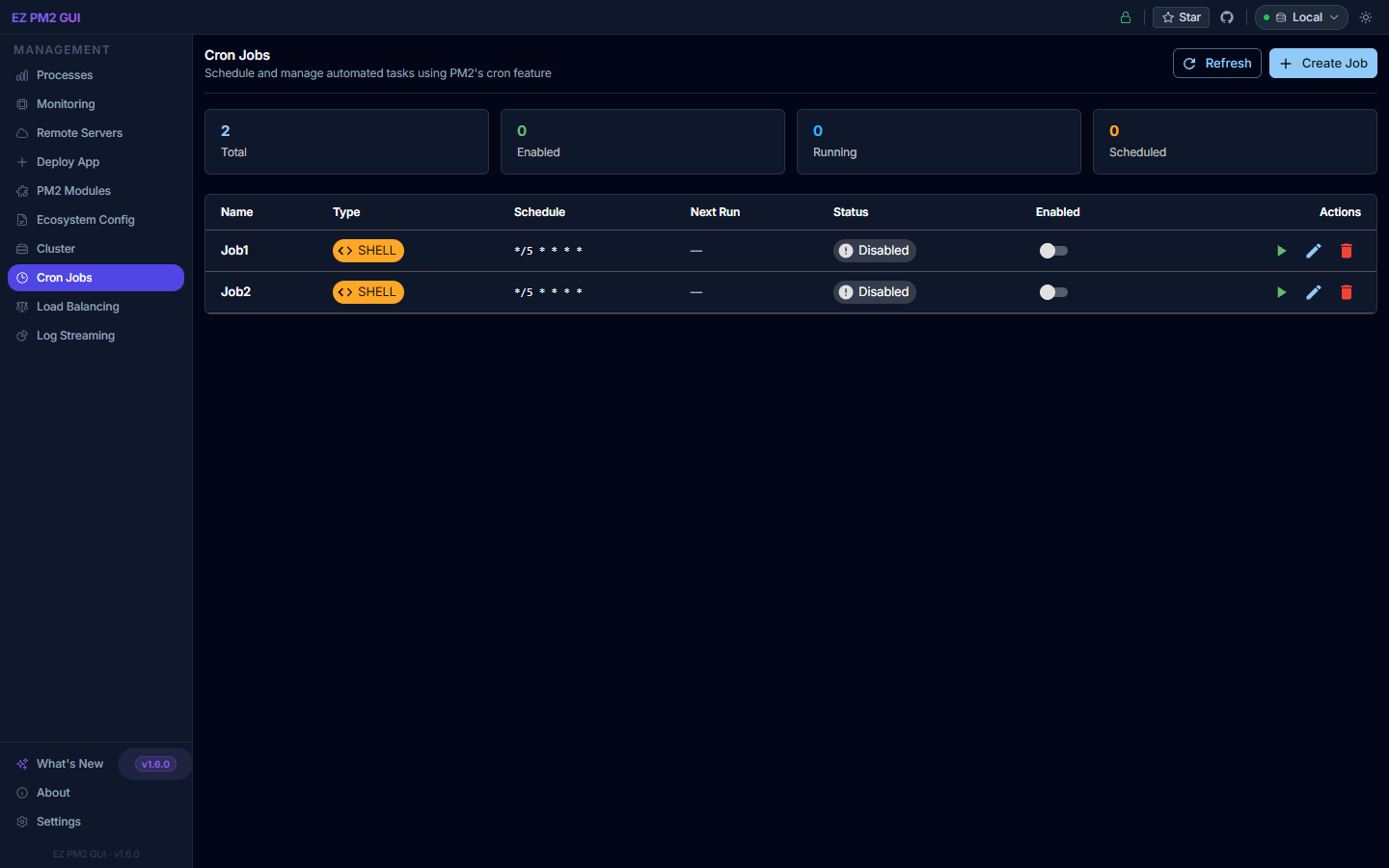

Cron Jobs — schedule recurring tasks without touching crontab:

Cron Jobs

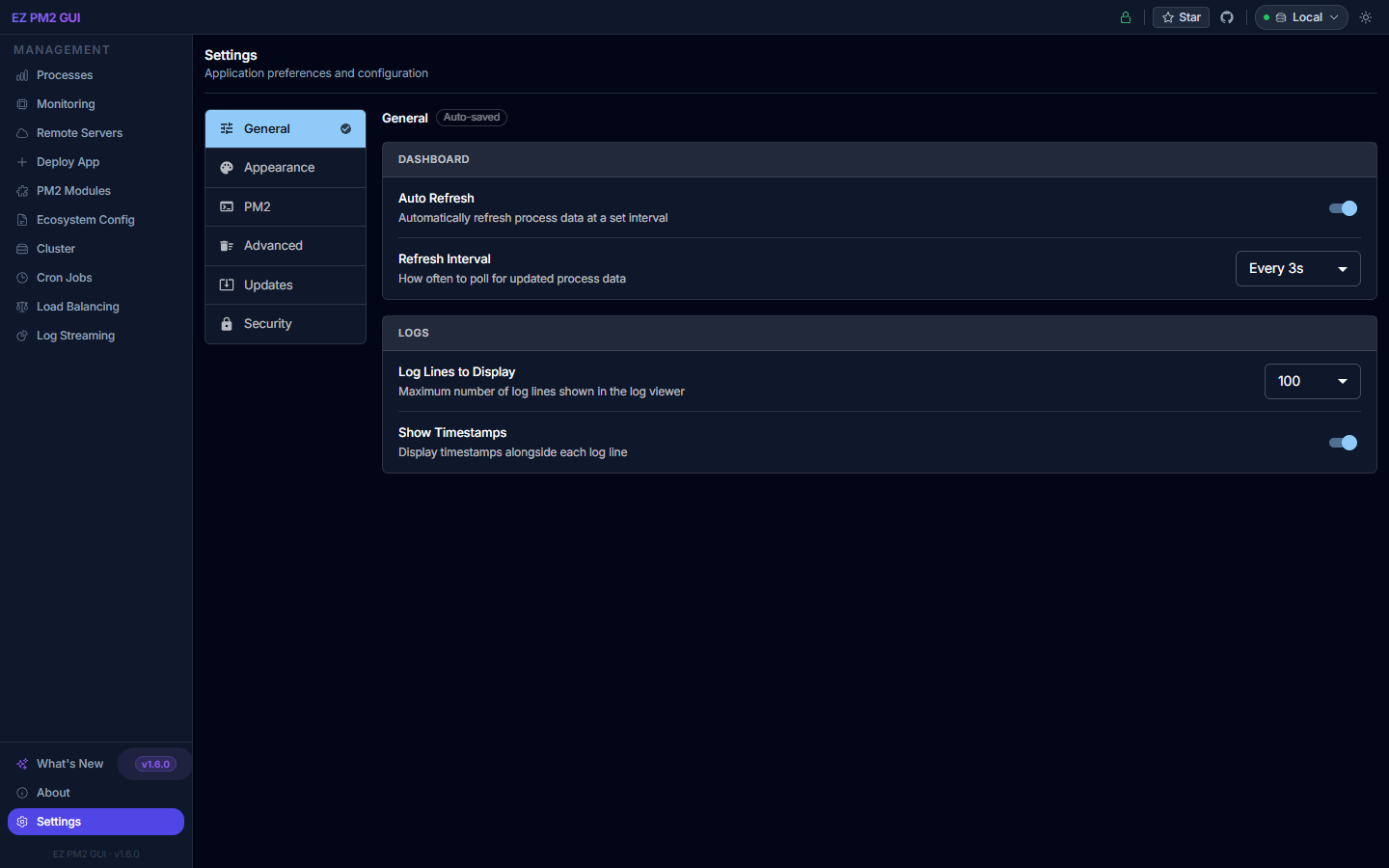

Settings — auto-saved preferences for refresh, logs, theme and security:

Settings

See the full visual walkthrough in https://ezpm2gui.vercel.app/ — every screen is annotated with a screenshot.

Features

  • Real-time process monitoring - Keep track of all your PM2 processes in real-time
  • Process management - Start, stop, restart, and delete processes with one click
  • Sidebar quick-actions (v1.9.0) - Per-process restart, start/stop, and logs buttons revealed on hover in the sidebar
  • System metrics dashboard - Monitor CPU, memory usage, and uptime
  • Metrics page with live sparklines - Per-process rolling 1-hour CPU and memory micro-graphs updated every 3s; switch to History tab for SQLite-backed long-term charts
  • Enhanced log streaming - View and filter logs from multiple processes simultaneously
  • Log search highlighting (v1.9.0) - Search terms are visually highlighted in the log viewer
  • Log timestamp range filter (v1.9.0) - Filter log output by start/end timestamp with snapshot mode
  • Remote log polling (v1.9.0) - Logs from remote servers fetched and displayed in real-time
  • WebSocket for live updates - Get instant updates without refreshing
  • Process CPU and memory charts - Visualize performance metrics over time
  • Filter processes by status or name - Quickly find the processes you need
  • Dark/light mode (v1.11.1) - Fully supported across all pages with Tailwind CSS; preference and accent color persisted across sessions
  • Docker support (v1.11.1) - Official Dockerfile and .dockerignore for containerised deployments
  • Cluster management - Easily scale your Node.js applications
  • Application deployment - Deploy new applications directly from the UI
  • Ecosystem configuration - Create and manage your PM2 ecosystem files
  • PM2 modules support - Manage and configure PM2 modules
  • Cron Jobs - Schedule and manage automated tasks with visual cron expression builder
  • Remote Server Management - Connect and manage PM2 on remote servers via SSH
  • End-to-end encrypted credentials (v1.9.0) - Remote server passwords encrypted in-browser with RSA-OAEP + AES-256-GCM before transmission
  • Advanced Monitoring Dashboard - Real-time performance charts with health scoring
  • Multi-language support (v1.11.0) - Full i18n with English, Nepali, and Chinese locales; language switcher in the navbar; community-extensible
  • Live metrics sparklines (v1.11.1) - Per-process rolling 1-hour CPU and memory micro-graphs; switch to History tab for SQLite-backed long-term charts
  • Tailwind CSS UI - Sleek, compact, and responsive design with consistent dark/light theming
  • Fully typed with TypeScript - Robust and maintainable codebase

Detailed Features

Process Monitoring

Monitor all your PM2 processes in real-time with detailed information on CPU usage, memory consumption, uptime, and status. The intuitive interface makes it easy to identify issues at a glance.

Multi-Language Support

EZ PM2 GUI ships with full internationalisation (i18n) powered by i18next and react-i18next:

  • Every page, component, dialog, toast, and tooltip is fully translated
  • English (default) and Nepali locales included out of the box
  • Language switcher in the navbar; selection persists across sessions
  • Community-extensible — add a new locale by following CONTRIBUTING_TRANSLATIONS.md
Remote Server Management

Connect to and manage PM2 processes on remote servers via secure SSH connections:

  • Add multiple remote server connections with SSH credentials
  • View and manage processes on remote servers
  • Stream logs from remote processes in real-time with polling
  • Execute PM2 commands on remote machines
  • End-to-end credential encryption — passwords are encrypted client-side (RSA-OAEP + AES-256-GCM hybrid scheme) before transmission; the server never sees plaintext passwords in transit
Cron Jobs

Schedule and automate tasks using PM2's cron restart feature:

  • Visual cron expression builder with common presets
  • Support for Node.js, Python, Shell, and .NET scripts
  • Inline script editor or file-based execution
  • Enable/disable jobs without deleting them
  • View next execution times and job status
Advanced Monitoring Dashboard

Get deeper insights into your system and process performance:

  • Real-time performance charts for CPU, memory, and load
  • System health score calculation
  • Historical metrics tracking
  • Process alerts for high resource usage
  • Per-process performance visualization
Application Deployment

Deploy new Node.js applications to PM2 directly from the UI. Configure all the necessary options including:

  • Application name and script path
  • Working directory
  • Number of instances for load balancing
  • Execution mode (fork or cluster)
  • Auto-restart options
  • Memory threshold for restarts
  • Environment variables
Cluster Management

Easily scale your Node.js applications with the cluster management interface. Add or remove instances on the fly and switch between fork and cluster execution modes for optimal performance.

Log Streaming

View and filter logs from multiple processes simultaneously with the enhanced log streaming interface. Features include:

  • Real-time log updates via WebSocket
  • Search with visual highlighting — matched terms are highlighted inline
  • Timestamp range filter — narrow logs to a start/end time window with snapshot mode (polling pauses while filter is active)
  • Filtering by process, log level, or content
  • Pausing and resuming log streams
  • Download logs for offline analysis
  • Floating log panel for remote process logs
  • Remote server log polling
Ecosystem Configuration

Generate and manage PM2 ecosystem configuration files directly from the UI. This makes it easy to set up complex application deployments and share configurations across your team.

PM2 Modules

Manage and configure PM2 modules to extend the functionality of your PM2 installation. Install, update, and remove modules with a few clicks.

System Metrics

Monitor key system metrics including:

  • CPU usage and number of cores
  • Memory usage and availability
  • System uptime
  • Load averages (1, 5, and 15 minutes)
User Interface

EZ PM2 GUI uses Tailwind CSS for a sleek, compact, and fully responsive interface:

  • Dark and light mode support across all pages
  • Consistent color theming with smooth transitions
  • Compact layout with small fonts and reduced spacing for information density
  • PageHeader and LogStatusBar reusable components for a consistent look
  • Configure dashboard refresh intervals and log display settings from Settings

Installation

Global Installation
npm install -g ezpm2gui
Local Installation
npm install ezpm2gui

Usage

As a Command Line Tool (Global Installation)
# Start the EZ PM2 GUI web interface
ezpm2gui

# Start on a specific port
ezpm2gui --port 4000

# Start bound to all network interfaces
ezpm2gui --host 0.0.0.0

# Generate a sample PM2 ecosystem config
ezpm2gui-generate-ecosystem
As a Module (Local Installation)
const ezpm2gui = require('ezpm2gui');

// Start the server with default options
ezpm2gui.start();

// Or with custom options
ezpm2gui.start({
  port: 3030,
  host: '0.0.0.0'
});
Access the UI

Once started, open your browser and navigate to:

http://localhost:3101

Requirements

  • Node.js 16.x or later
  • PM2 installed globally (npm install -g pm2)

Configuration

EZ PM2 GUI uses environment variables for configuration:

  • PORT: The port to run the server on (default: 3101)
  • HOST: The host to bind to (default: localhost)

You can set these in a .env file at the project root (create it if it doesn't exist):

# .env
PORT=3102
HOST=localhost

For the React client to connect to the correct port during a production build, also set:

# src/client/.env
REACT_APP_API_URL=http://localhost:3102

Load Balancing with PM2

EZ PM2 GUI provides an easy interface to manage PM2's load balancing capabilities:

Setting Up Load Balancing

  1. Deploy a new application or modify an existing one:

    • Set the number of instances to greater than 1 (or 0/-1 for max instances based on CPU cores)
    • Choose "Cluster" as the execution mode for optimal load balancing

  2. Manage your cluster:

    • Use the Cluster Management section to scale instances up or down
    • Switch between fork and cluster execution modes
    • Reload all instances with zero downtime
How Load Balancing Works

PM2 provides built-in load balancing when you run your Node.js applications in cluster mode with multiple instances:

  • Cluster Mode: In this mode, PM2 uses Node.js's cluster module to create multiple worker processes that share the same server port
  • Multiple Instances: Incoming requests are automatically distributed across your instances
  • Zero Downtime Reloads: When updating your application, PM2 can reload instances one by one to avoid downtime
Best Practices
  • For CPU-intensive applications, use a number of instances equal to the number of CPU cores
  • For I/O-intensive applications, you can use more instances than CPU cores
  • Always use cluster mode for load balancing to ensure port sharing between instances
  • Use the reload feature instead of restart for zero-downtime deployments

Development

See DEVELOPMENT.md for detailed development instructions.

# Clone the repository
git clone https://github.com/thechandanbhagat/ezpm2gui.git
cd ezpm2gui

# Install dependencies and build
./install.sh   # On Linux/macOS
install.bat    # On Windows

# Start in development mode
npm run dev

# Build the application
npm run build

# Start the application (production mode)
npm start
Project Structure
ezpm2gui/
├── bin/                 # CLI entry points
├── dist/                # Compiled output
├── docs/                # Documentation
├── screenshots/         # Application screenshots
├── scripts/             # Build and utility scripts
├── src/                 # Source code
│   ├── client/          # React frontend
│   │   ├── public/      # Static assets
│   │   └── src/         # React components and logic
│   │       ├── components/ # UI components
│   │       └── types/   # TypeScript types for client
│   ├── server/          # Express backend
│   │   ├── routes/      # API routes
│   │   └── utils/       # Server utilities
│   └── types/           # Shared TypeScript types
└── test/                # Test files

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

  1. Fork the repository
  2. Create your feature branch (git checkout -b feature/amazing-feature)
  3. Make your changes
  4. Run the tests to ensure everything works
  5. Commit your changes using our commit guidelines
  6. Push to the branch (git push origin feature/amazing-feature)
  7. Open a Pull Request
Coding Style

This project follows standardized TypeScript conventions and uses ESLint for code quality. Before submitting a pull request, please ensure your code follows these guidelines by running:

npm run lint

FAQ

Q: How does EZ PM2 GUI differ from pm2-gui and PM2 Plus?

A: EZ PM2 GUI is a modern, TypeScript-based alternative to pm2-gui with a more user-friendly interface and additional features. Unlike PM2 Plus, it's completely free and open-source, running locally on your server rather than in the cloud.

Q: Can I use EZ PM2 GUI with PM2 running on a different machine?

A: Yes, you can configure EZ PM2 GUI to connect to a remote PM2 installation. You'll need to specify the connection details in the application settings.

Q: How do I generate an ecosystem file from my existing processes?

A: Use the ezpm2gui-generate-ecosystem command-line tool, or visit the Ecosystem Config section in the web UI.

Q: Can EZ PM2 GUI handle a large number of processes?

A: Yes, EZ PM2 GUI is designed to handle dozens of processes efficiently. The UI is optimized to present large amounts of information in a digestible format.

Q: Is EZ PM2 GUI secure?

A: By default, EZ PM2 GUI binds to localhost for security reasons. If you expose the interface to other machines, consider adding authentication through a reverse proxy like Nginx.

Related Projects

  • PM2 - The process manager that EZ PM2 GUI works with
  • pm2-gui - The original inspiration for this project

License

GNU Affero General Public License v3.0 or later (AGPL-3.0-or-later). See LICENSE.

EZ PM2 GUI interfaces with PM2, which is licensed under AGPL-3.0. Because this project links PM2 as a library, it is distributed under the same license.

Credits

Built by Chandan Bhagat as a modern alternative to pm2-gui.

Note: EZ PM2 GUI is not officially affiliated with PM2 or PM2 Plus. It's an independent tool that interfaces with the PM2 process manager.
